Drum, Pail and Jug-Mounted Equipment

Lafferty manufactures venturi Foamers, Sprayers, and Mixing Stations that mount onto, and dispense directly from, containers of concentrated chemical.

Minimal setup time – Install equipment and start working faster compared to wall-mounted equipment.

Safe and efficient – Mount equipment directly onto the original chemical container for quick identification and to avoid potentially hazardous chemical transfer operations.

Low profile – Reduce clutter to provide a safe and tidy working area.

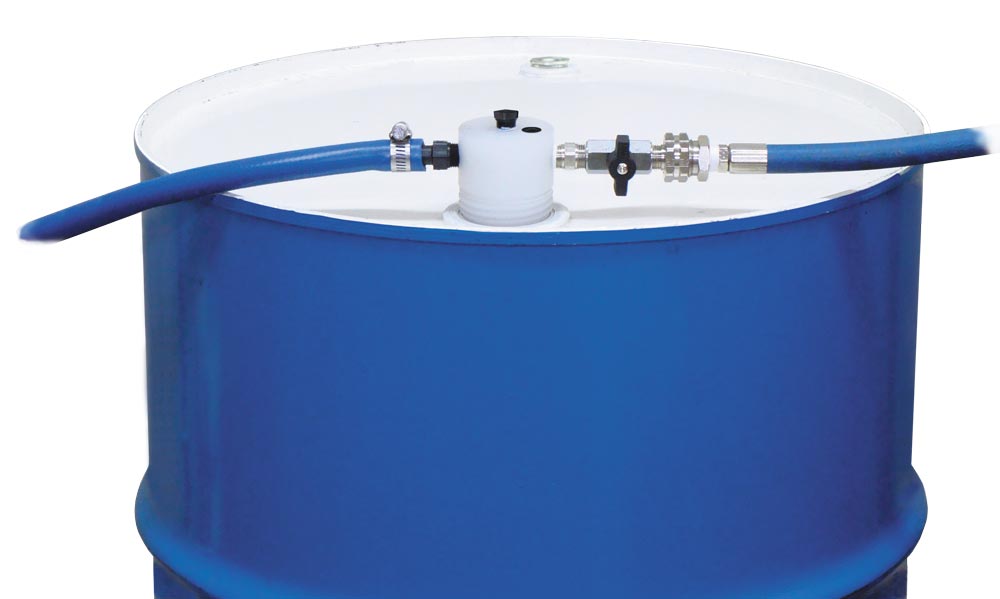

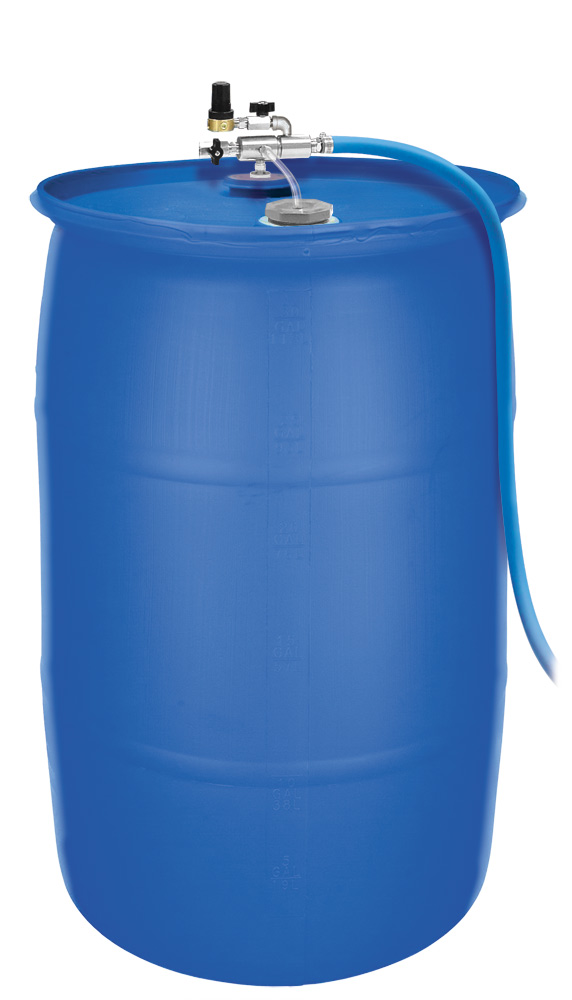

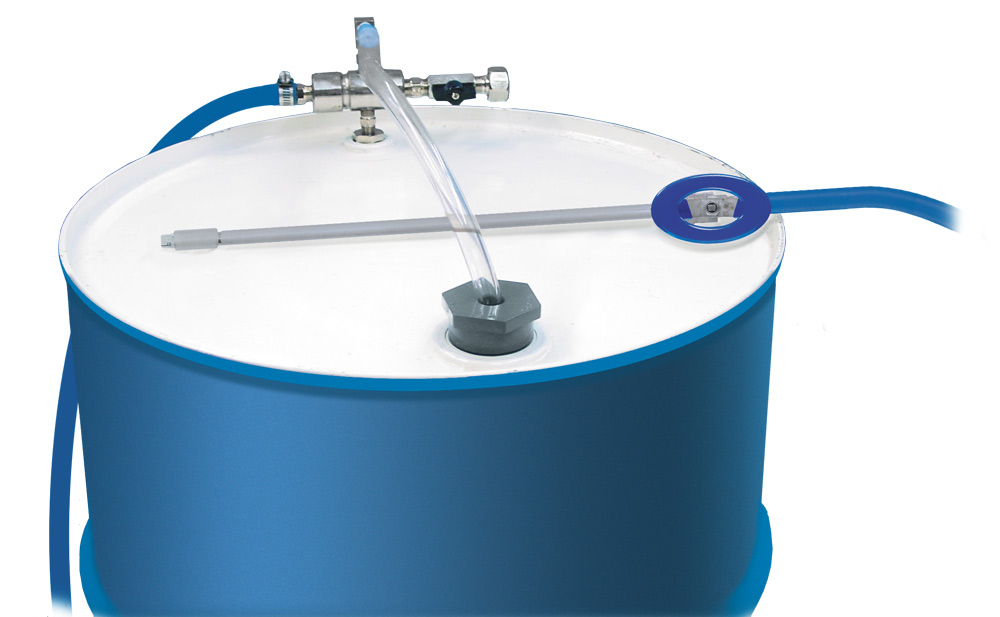

Drum Bung Mounted System
With Hose Rack #224150

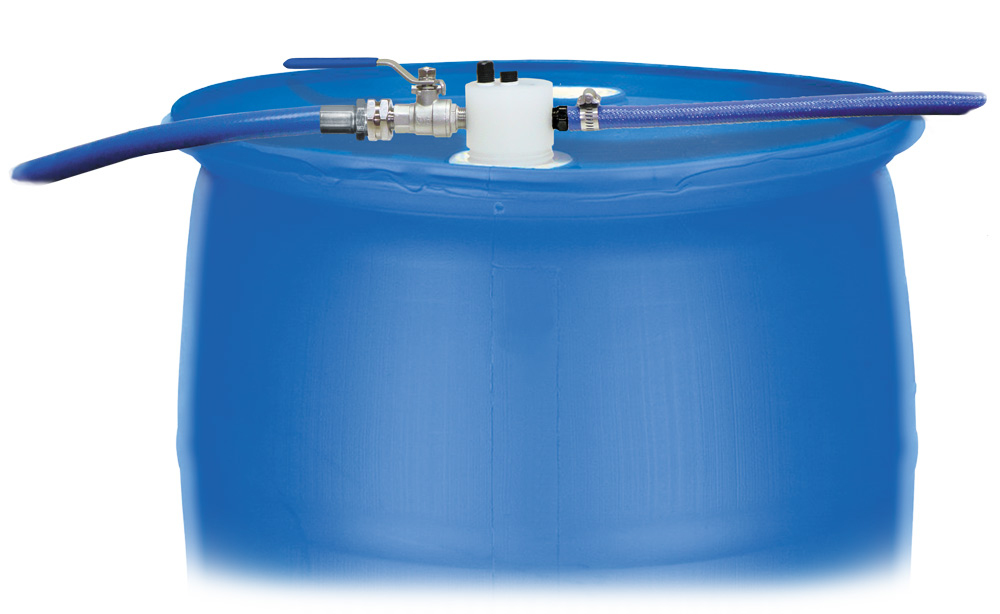

Lafferty Drum Bung Mount (DBM) Chemical Dilution and Application Systems™

No compressed air required! Simply connect city water pressure.

Mixing Stations
dispense diluted chemical into any container via an open-flow discharge tube.

Spray-Alls
include a wand with fan nozzle to project liquid spray in a fan pattern.

Airless Foamers
aerate the product without compressed air to increase chemical contact time.

Product Image

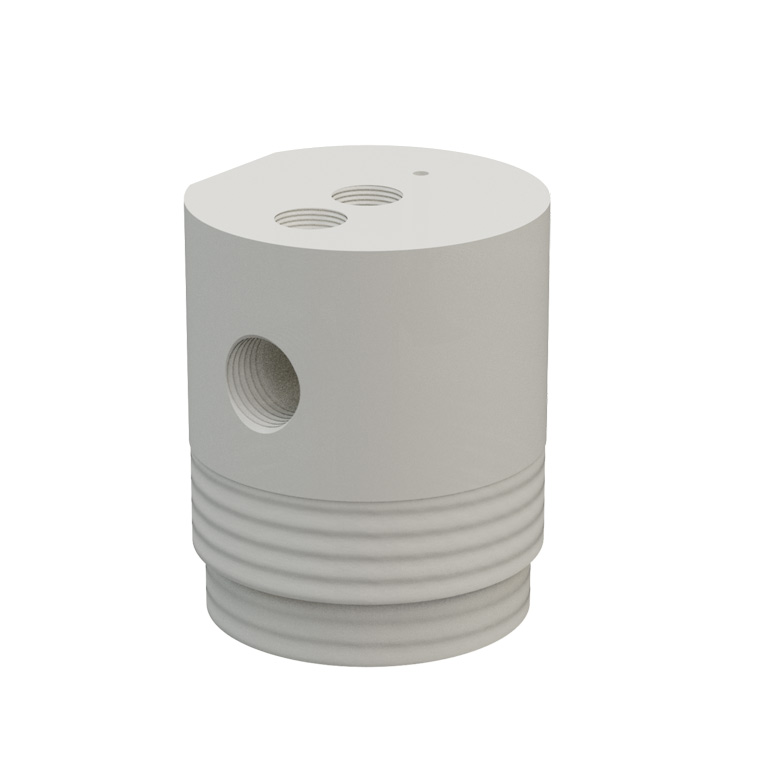

The drum bung Uni-Body is machined from solid polypropylene and features both fine and coarse male threads to fit most common bung openings.

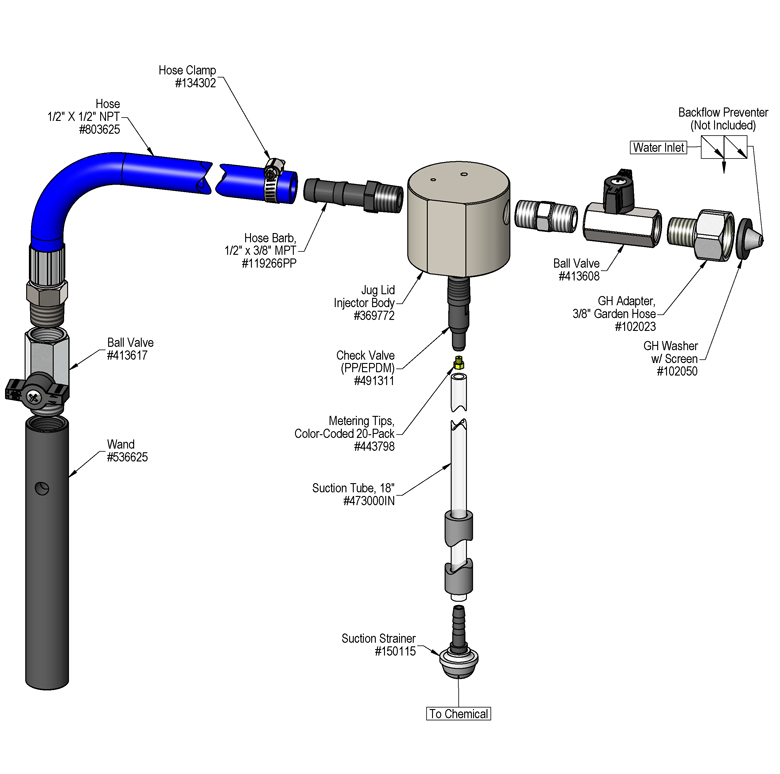

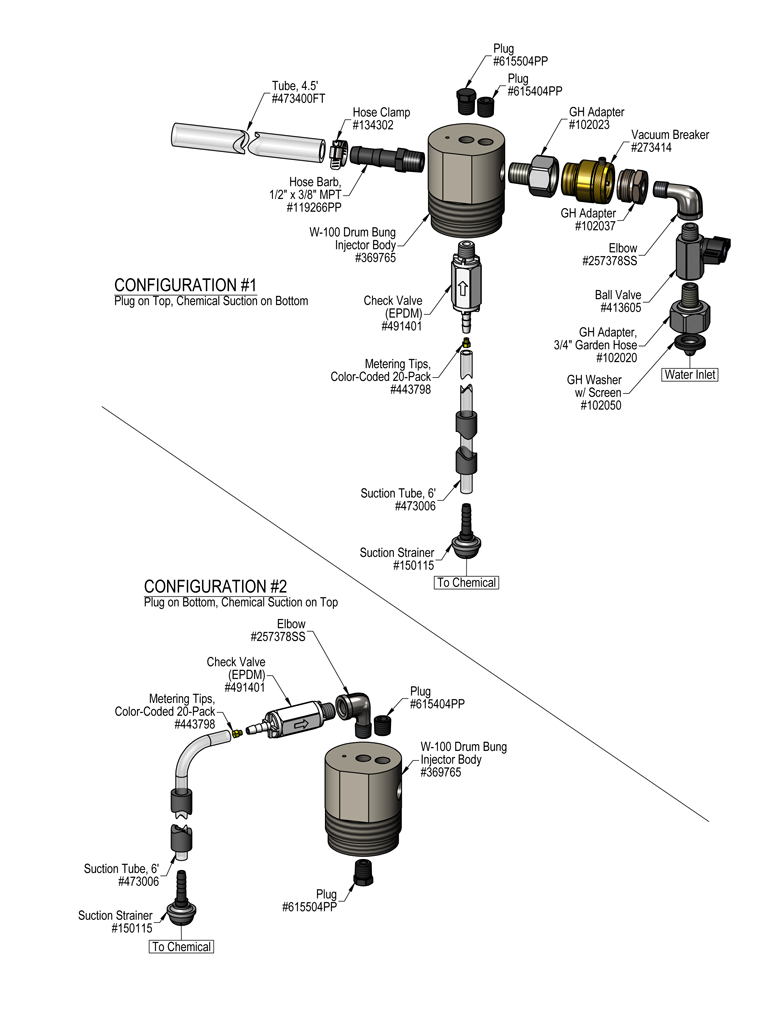

Product Diagram
Choice of installation configurations. Option #1 discourages users from adjusting the dilution (metering tip).

Any drum bung unit can be mounted to a tote that has a lid with a bung opening.

Drum Mount & DBM Air-Assisted Foamers

Connect city water pressure and compressed air.
Product Image

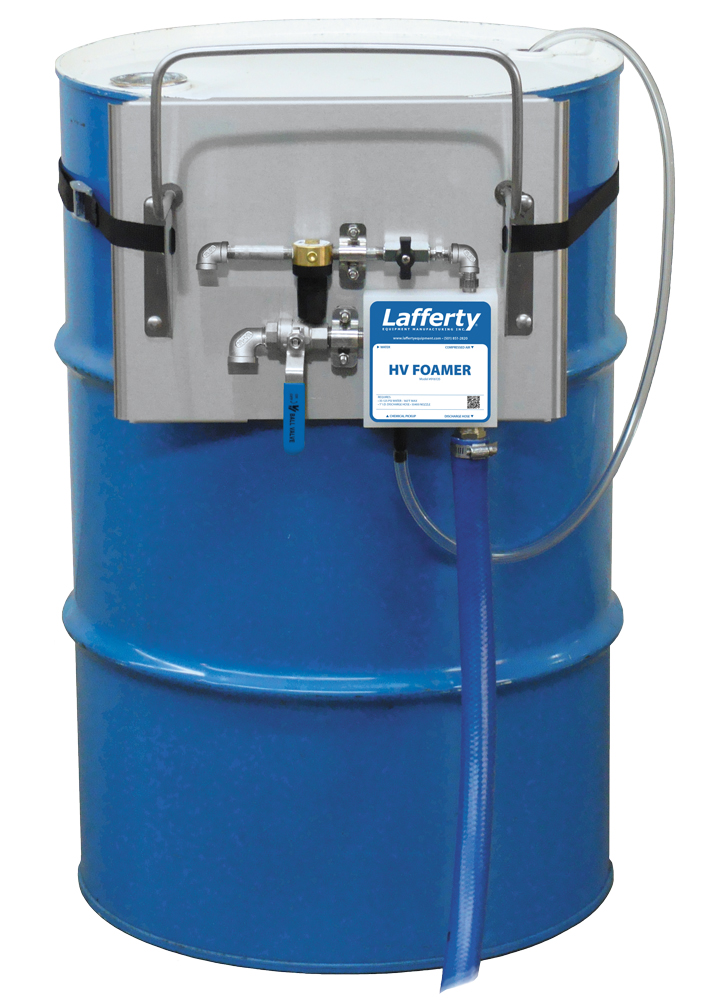

Drum Mount HV Foamer mounts to the side of a chemical drum or tote and projects a high volume of foam up to 25 ft.

Product Image

Drum Bung Mount LCSS Foamer attaches to 3/4″ bung threads and projects rich, clinging foam up to 12 ft.

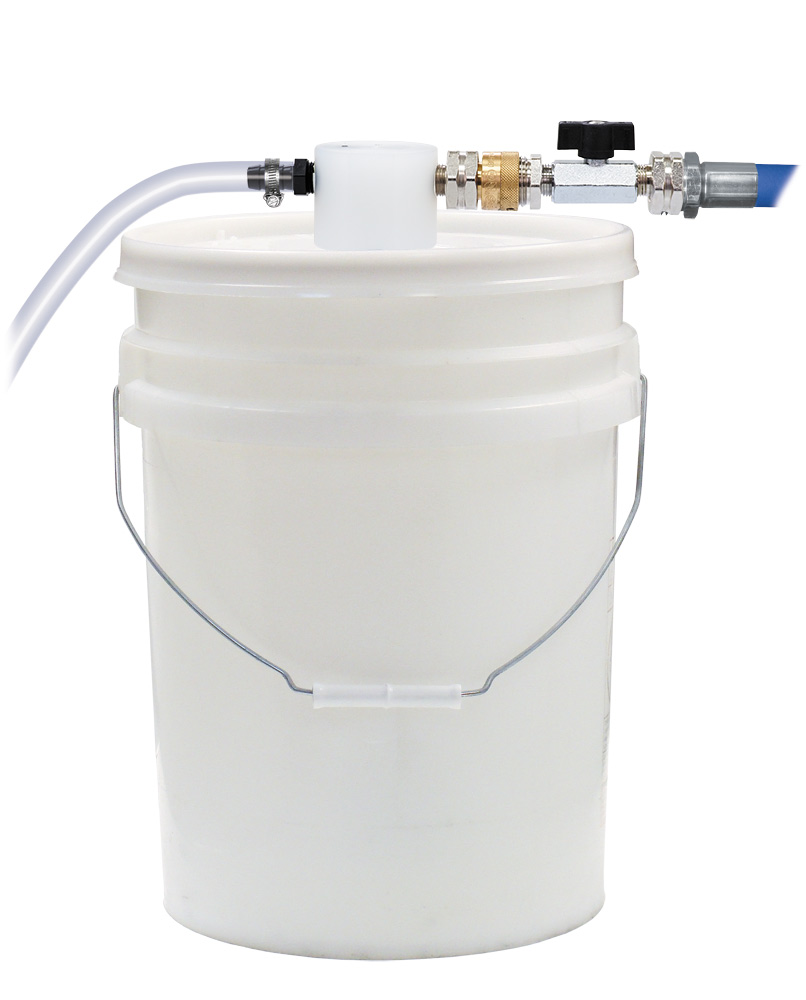

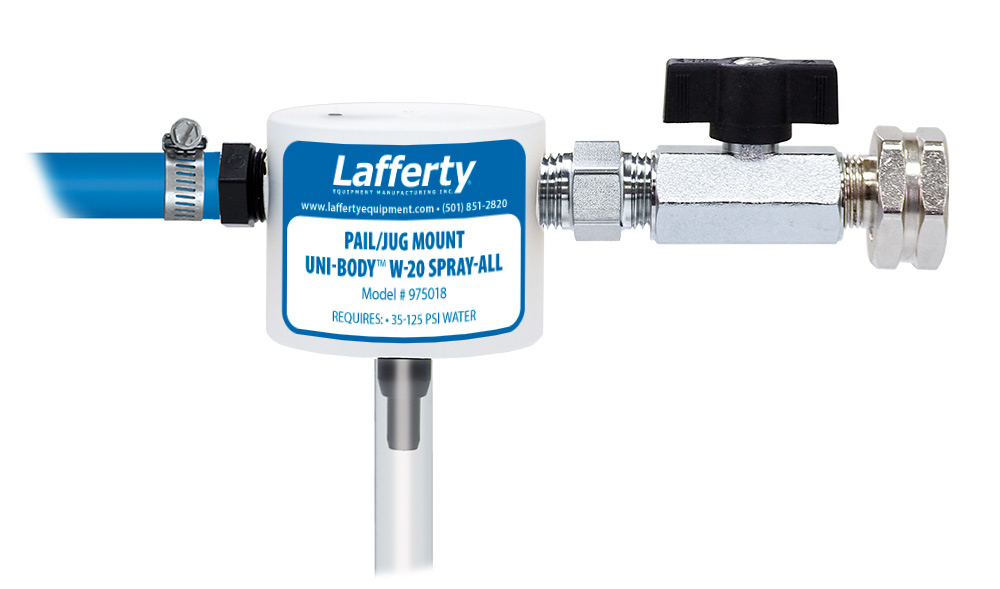

Pail/Jug Mount Systems

No compressed air required! Simply connect city water pressure.
5-gallon pail pull-up spout

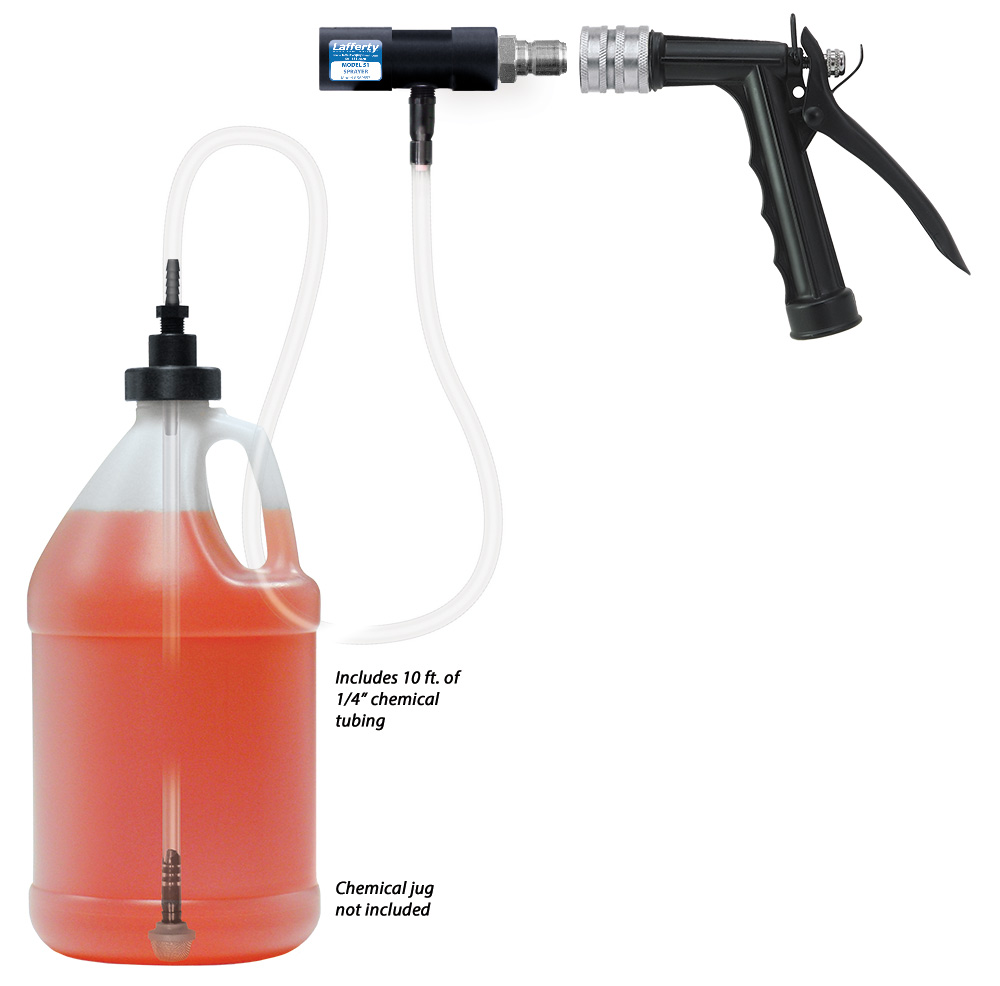

Designed for 1-gallon jugs, 5-gallon pail pull-up spouts, or any container with 38mm OD threads.

Hose-End Sprayers and Airless Foamers

No compressed air required! Models available for city water pressure (35-125 PSI) or pressure washers (2.2+ GPM).

Unlike Lafferty “Compact” Sprayers and Foamers, which feature an attached 32oz bottle, “Hose-End” systems draw chemical from a larger container for longer spraying time before refilling.

Drawing from a larger container is especially helpful for chemicals that are applied at strong dilution ratios that would quickly deplete a smaller container.

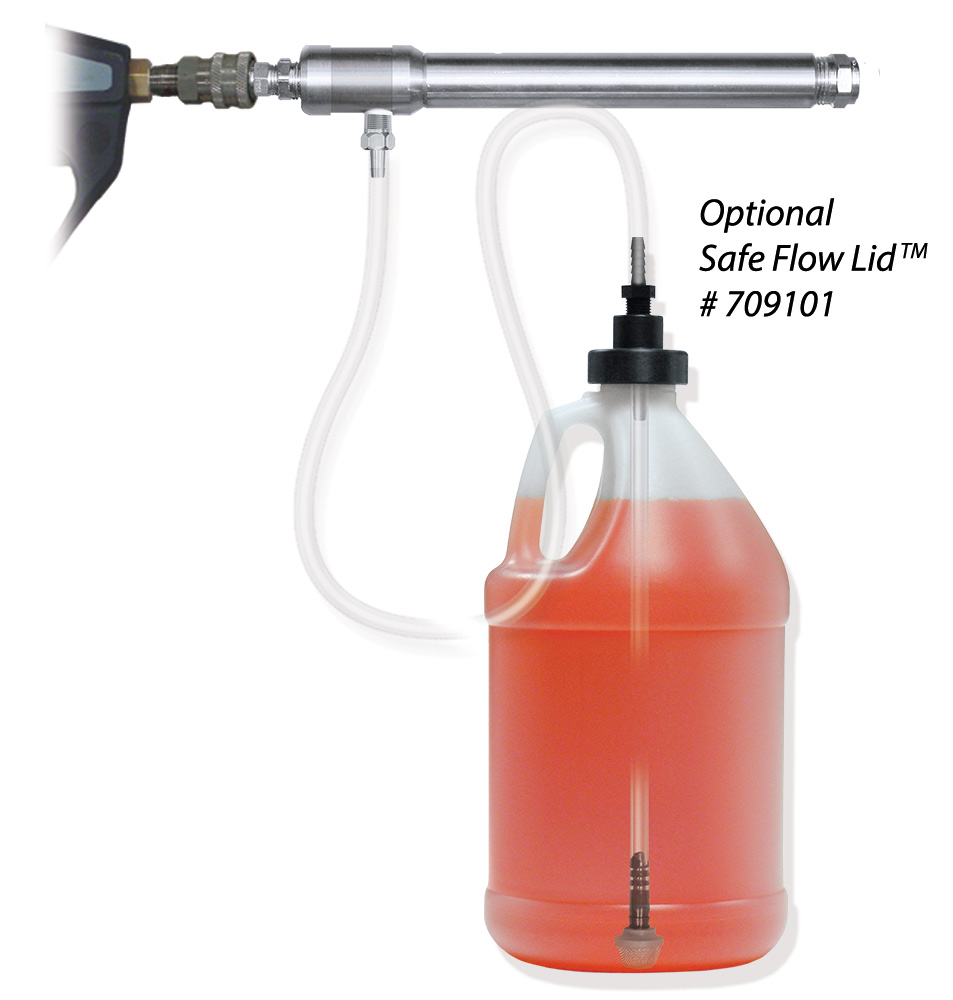

Stainless Steel Hose-End Systems for Pressure Washers (2.2+ GPM)
Hose-End Systems for City Water Pressure (20-100 PSI)

DBM Acid Sprayers and Airless Foamers

No compressed air required! Simply connect city water pressure.

Lafferty Acid/Corrosive Systems feature acid-resistant construction materials and special design considerations to enhance user safety.

Extended wand

DBM Asphalt Release Sprayers and Airless Foamers

No compressed air required! Simply connect city water pressure.
Product Image

Lafferty Asphalt Release (AR) Systems provide quick and consistent application of asphalt release agents.

Chemical Dispensing Accessories

The systems above attach directly to containers of chemical concentrate for increased efficiency. For wall-mounted systems, dispensing accessories can provide many of the same benefits.
  • Prevent debris from entering the chemical supply.
  • Reduce odor from off-gassing chemicals.
  • Swap chemical containers faster and with less mess.
  • Minimize spillage if container is tipped over.
  • Facilitate high volume pumping and overcome problems inherit with flexible suction tubing (see accessories below with rigid pipe).

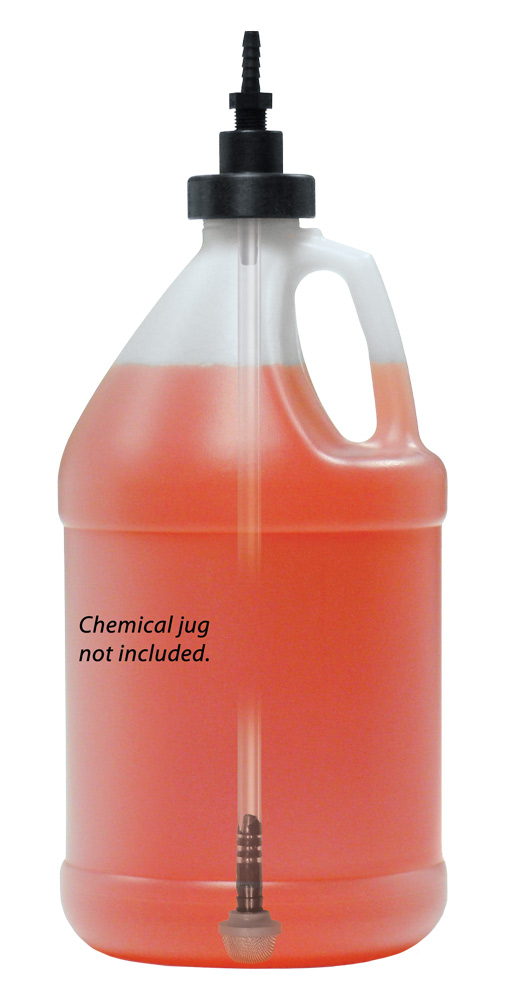

Lafferty 1-Gallon Safe Flow Lids™
  • Safe Flow Lids are designed for 1-gallon chemical jugs, but can also thread onto the pull-up spout on some larger containers.
  • Available with several thread options.
  • Includes 14″ of flexible 1/4″ tubing between lid and strainer (cut to fit container depth).

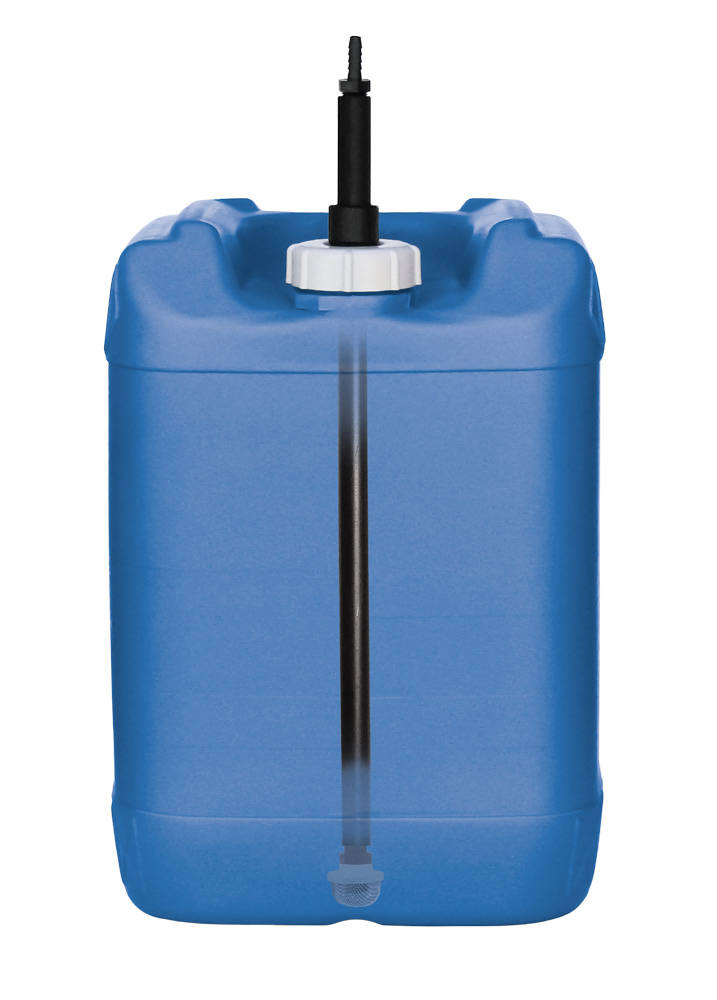

Lafferty 5-Gallon Safe Flow Lids™
  • Threads onto the pull-up spout on bulk containers.
  • Available with several thread options.
  • Sliding collar adjusts to the container depth.

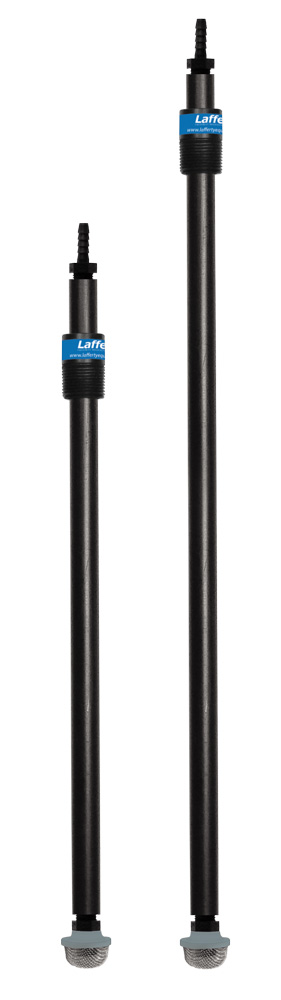

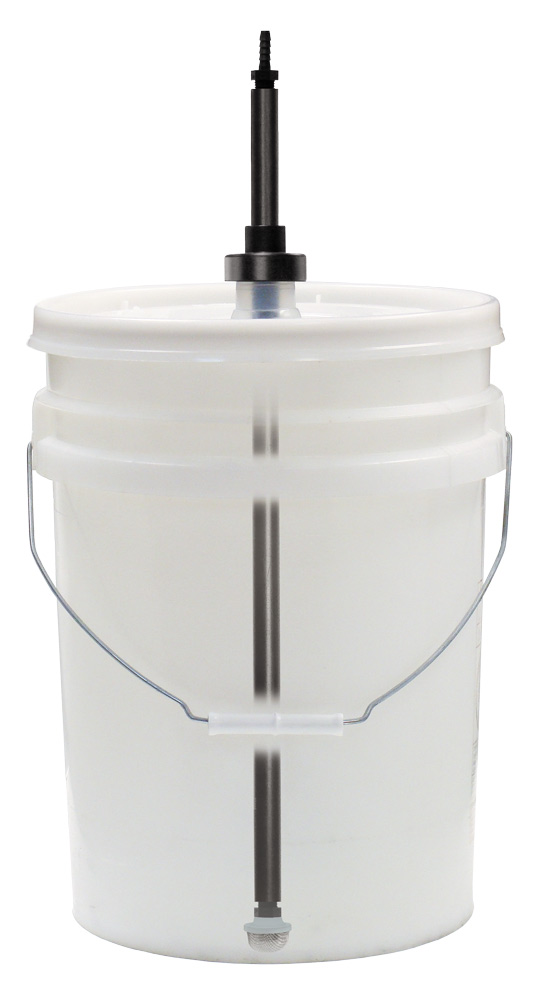

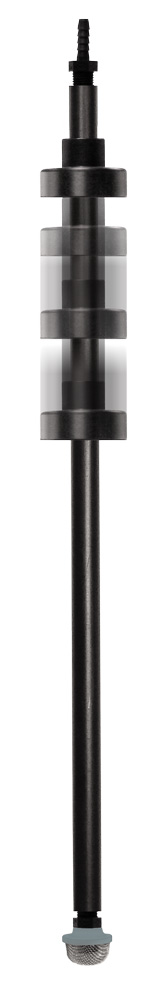

Lafferty Safe Flow Pail Sticks™
  • Threads into 3/4″ lid knockouts.
  • Available in several standard lengths.
  • Sliding collar adjusts to the container depth.

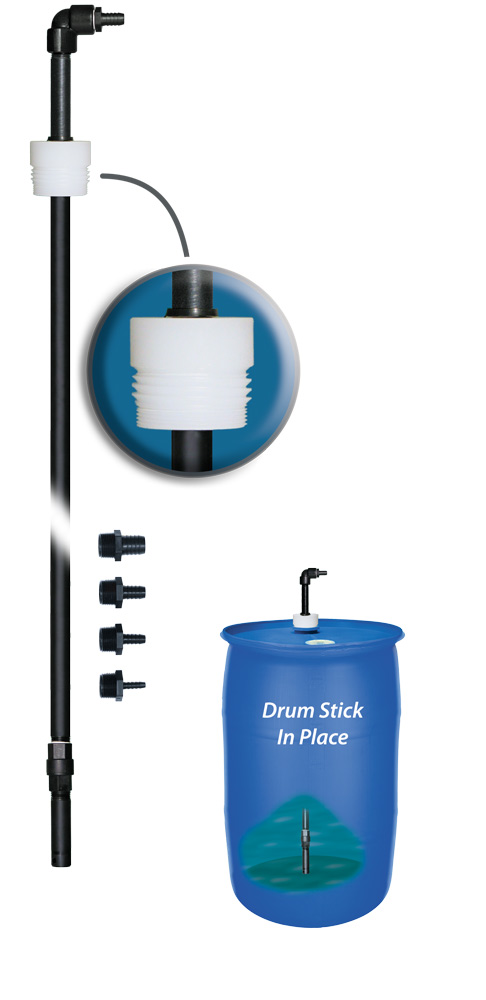

Lafferty Drum Sticks™
  • Fine and coarse male threads fit most common bung openings.
  • Drum bung adapter slides along the pipe and adjusts to drum depth.
  • Available in several lengths to fit standard drum depths (33″, 48″, 54″).

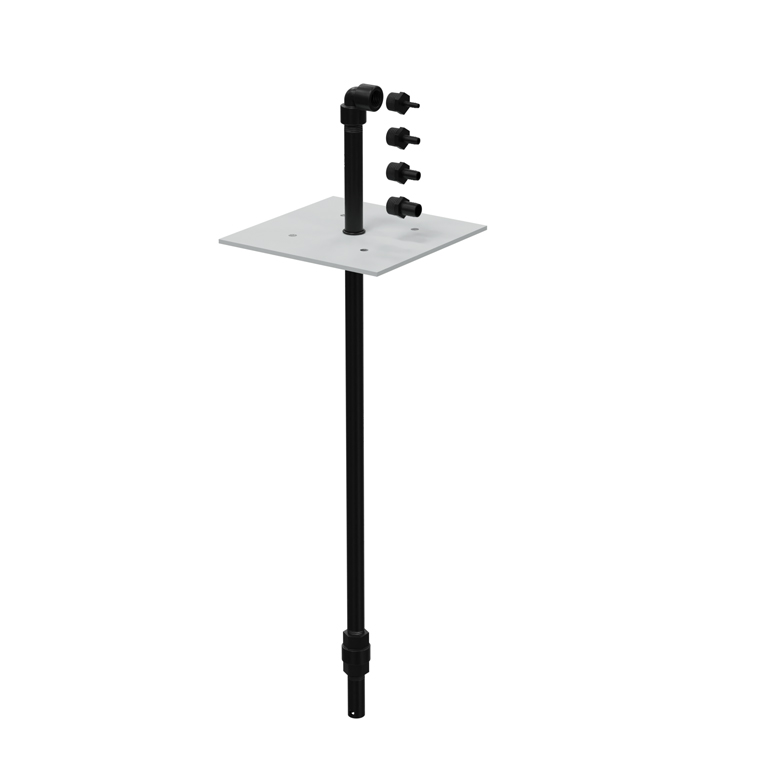

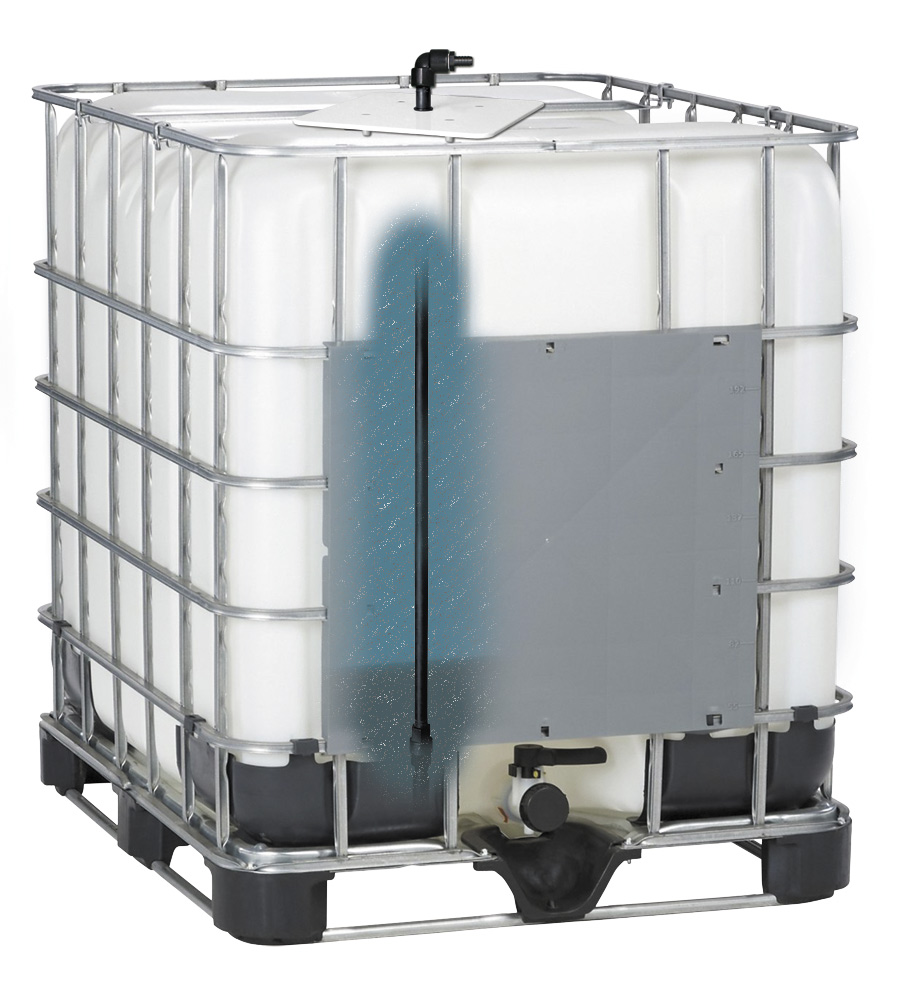

Lafferty Tote Sticks™
  • Polypropylene plate covers the tote opening and slides along the pipe to fit tote depth.
  • Available in several lengths to fit standard tote depths (33″, 48″, 54″).

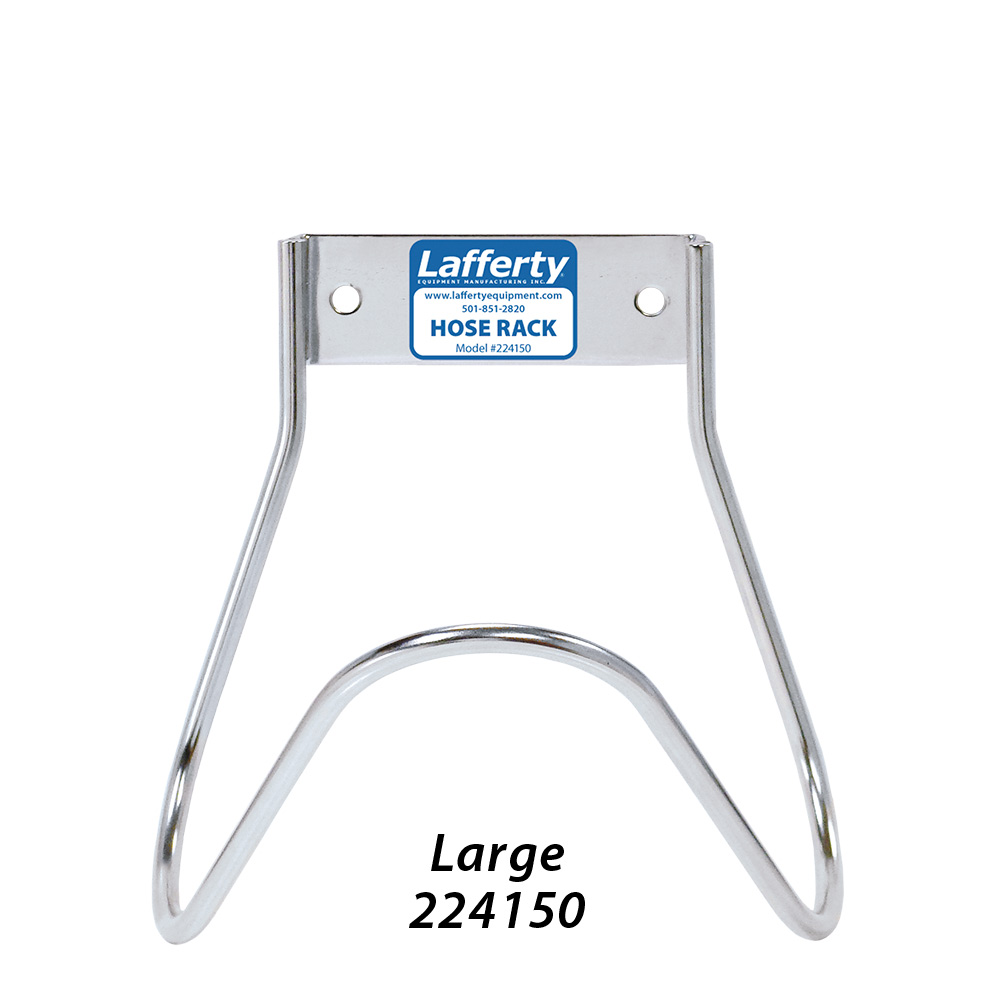

Stainless Steel Hose Rack
  • Electropolished stainless steel.
  • Sanitary, welded design with rounded edges for safety.
  • Suitable for any of the drum-mounted systems on this page.

Lafferty can customize drum-mounted equipment and dispensing accessories to fit any chemical container.

Please contact us to discuss your goals!
