Entryway Foam Sanitizers – Pump Fed Selection Guide

Pump Fed “PF” Entryway Foam Sanitizers receive ready-to-use chemical from a central feed system.

Pump Fed Entryway Systems offer long-term advantages, and require pre-planning to select the appropriate backroom components.
  • Centralize key aspects of your sanitation program.
  • No chemical concentrate on the production floor.
  • Reduce employee hazards and the possibility of tampering.
  • Eliminate dilution variations due to water pressure at each doorway.
  • Simplify chemical dilution validation.
  • Easily change chemical or dilution ratio for all connected units.
  • Available with multi-zone activation for maximum flexibility and control.

Table of Contents

Pump Fed Entryway Configurations


Timed
vs.
Satellites

Operate independent timed units or activate several satellite units simultaneously.

Timed Controller
vs.
PLC Controller

Satellite units only. Activate several satellites simultaneously with a simple repeating timer or an advanced controller.

Multi-Zone Vision PLC Controller

Vision Satellite units only. Activate satellites in zones at different times using an advanced controller.

Door Size

Choose a model that will cover the entire entryway area with foam.

All configurations are available for:

• 3′ wide walk doors (standard)
• Up to 6′ wide double doors (MV)
• Up to 16′ wide overhead doors (XV)

XV models for larger doors require a Spreader Nozzle on each side of the doorway, while a single nozzle achieves full coverage for smaller doors.


Design the optimal Pump Fed System with the Lafferty Entryway Systems Planning Tool

Pump Fed Timed Systems

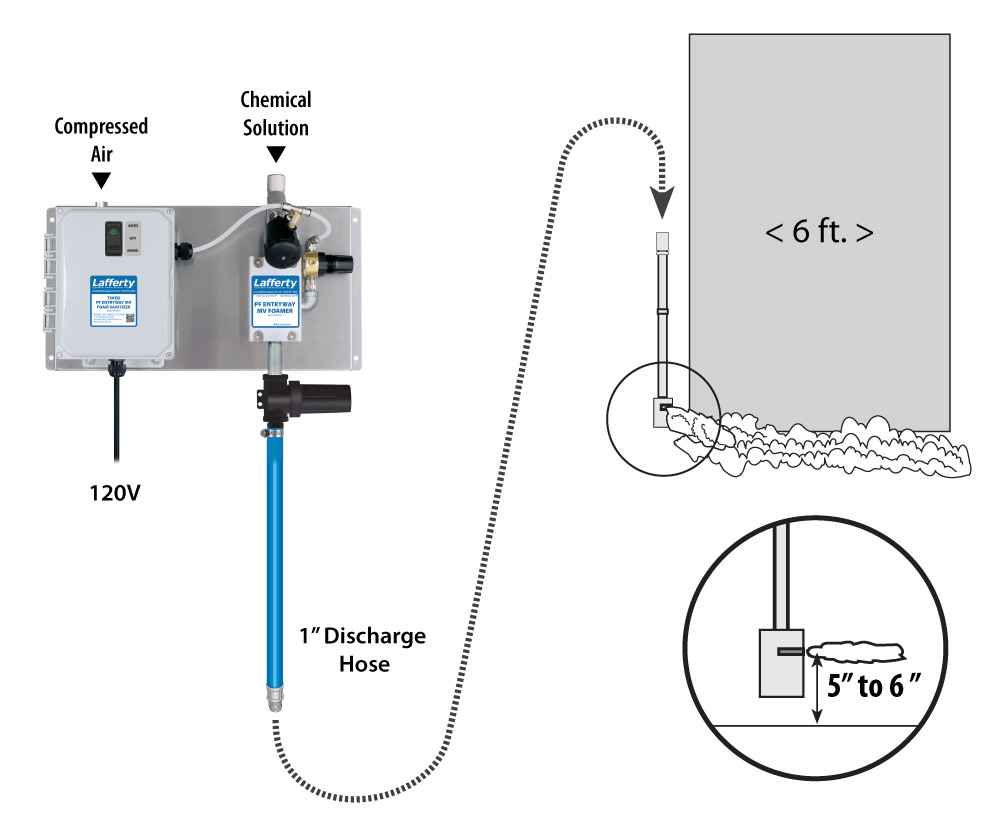

Each Pump Fed Entryway Foam Sanitizer includes a control box and operates independently. Simple timer settings apply foam at regular, timed intervals – with a manual override switch.

This is the “standard” installation configuration. It is also the easiest to install and the most flexible to run.

When a larger number of units are attached to the Central System, it may be necessary to adjust the timers to ensure that the number actually foaming at the same time does not exceed the capacity of the Central System being used. Use the Lafferty Entryway Systems Planning Tool to calculate utility requirements.

Control box upgrades are available for Remote Push Button and Electric Eye (Photocell) activation.

ModelDescription with Link to DetailsCoverage
976250Timed PF Entryway Foam Sanitizer3′
976256Timed PF Entryway MV Foam Sanitizer6′
976260Timed PF Entryway XV Foam Sanitizer16′
Optional Upgrades
976003PBPF Push Button Upgrade
976003EEPF Photocell Upgrade

Pump Fed Satellites with Controller

Simultaneously activate up to 10 Satellite Pump Fed Entryway Foamers with a simple repeating timer, or advanced controller.

The Satellite Controller regulates airflow to Satellite units, which include a solenoid on the chemical solution line that opens to begin foaming. The control box includes a manual override switch.

This configuration may provide savings due to a lower cost per doorway. Take care to size the Central Pumping System accordingly because all units will run at the same time. Use the Lafferty Entryway Systems Planning Tool to calculate utility requirements.

The Timed Entryway Satellite Controller offers simple settings to activate unit(s) at regular, timed intervals.

976625

The PLC Jazz Satellite Controller features highly flexible programming options for holidays, weekly or seasonal changes in hours, and peak versus off-peak traffic demands.

976630
ModelDescription with Link to DetailsCoverage
976640Satellite PF Entryway Foam Sanitizer3′
976641Satellite PF Entryway MV Foam Sanitizer6′
976642Satellite PF Entryway XV Foam Sanitizer16′
Satellite Controllers
976625Timed Entryway Satellite Controller
976630PLC Jazz Entryway Satellite Controller

Pump Fed Vision Satellites with Multi-Zone Controller

976710

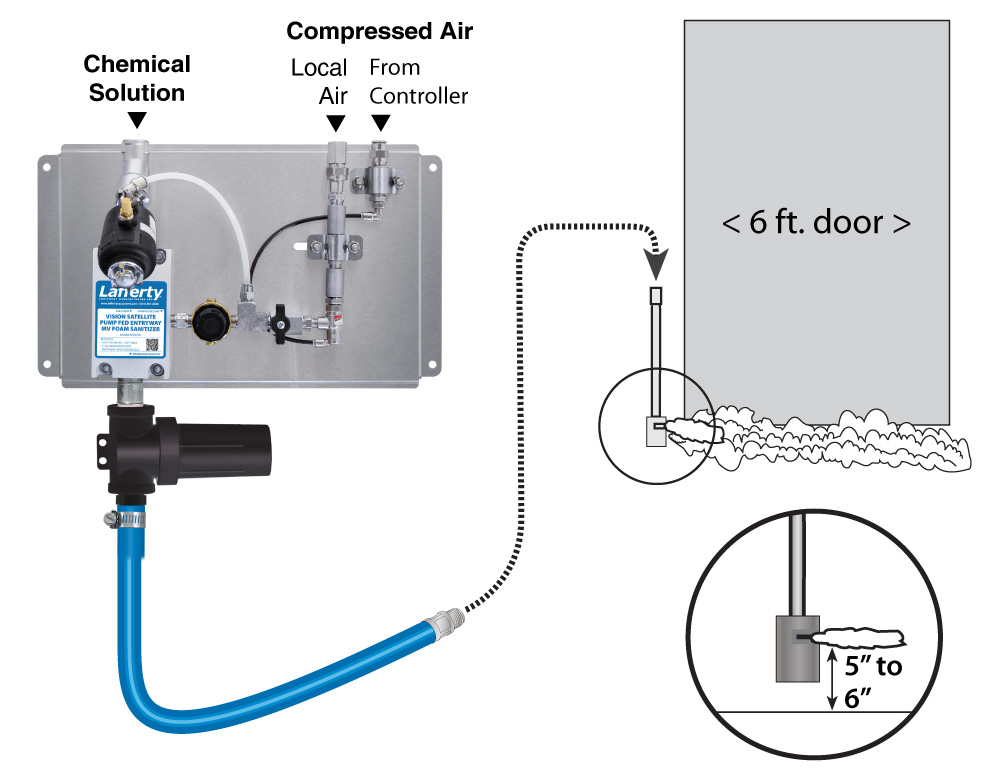

Activate up to 6 zones with up to 10 Vision Pump Fed Satellite Entryway Foam Sanitizers per zone. Each zone is controlled independently via an air pilot signal from the controller, which reduces the pumping capacity required from the Central System(s).

The 6-Zone PLC Vision Satellite Controller features highly flexible programming options for holidays, weekly or seasonal changes in hours, and peak versus off-peak traffic demands. These settings can be different for each zone.

Use the Lafferty Entryway Systems Planning Tool to calculate utility requirements.

NOTE: Multi-zone setups with a single controller require a Vision Controller and Vision Satellites. Standard Entryway Satellites are not compatible with the Vision Entryway Satellite Controller.

ModelDescription with Link to DetailsCoverage
976724Vision Satellite PF Entryway Foam Sanitizer3′
976725Vision Satellite PF Entryway MV Foam Sanitizer6′
976726Vision Satellite PF Entryway XV Foam Sanitizer16′
Vision Satellite Controller
9767106-Zone PLC Vision Entryway Satellite Controller

Dilution & Pumping Equipment

DON’T FORGET: Pump Fed Entryways are part of a Central System that requires appropriately-sized backroom components.

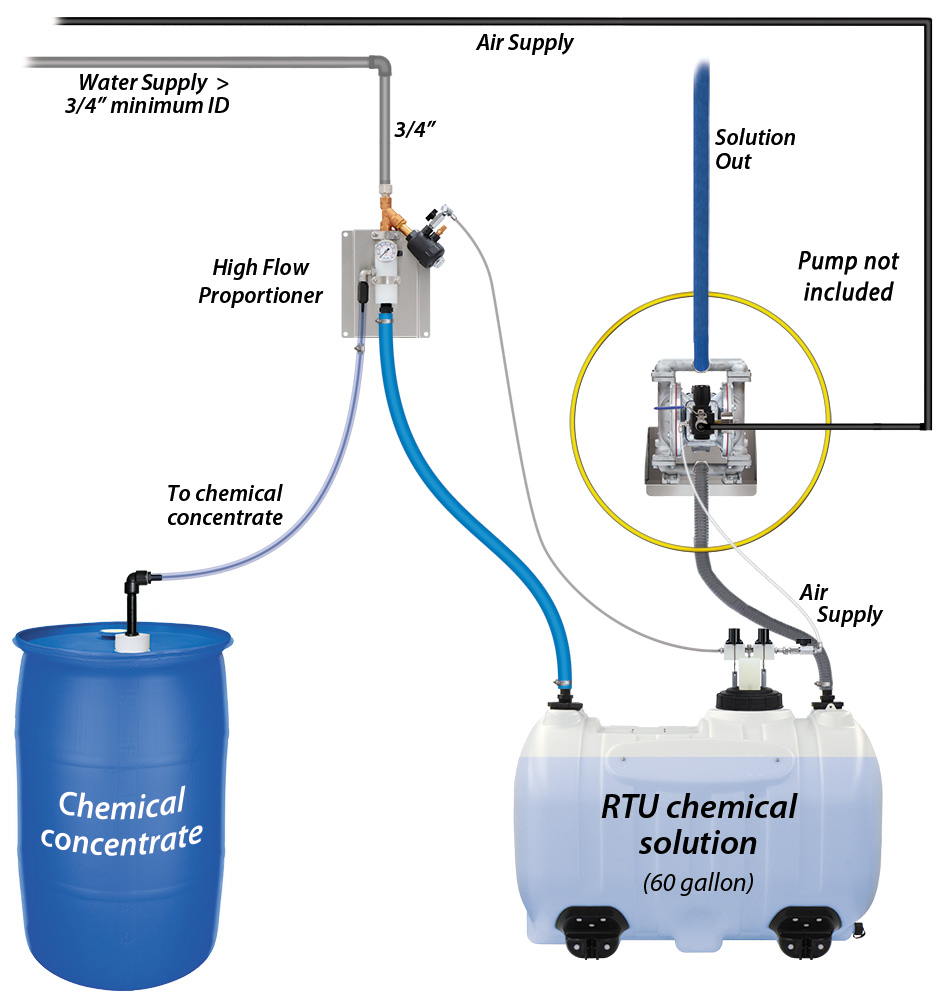

Lafferty offers dilution and pumping systems to drive several Pump Fed Entryway Foam Sanitizers or an entire building with Pump Fed Entryways, Foamers, Spray Sanitizers, Hose Drop Stations, and more.

Use the Lafferty Entryway System Planning Tool to create a quote based on your needs. Consider the possibility of future expansion when selecting dilution equipment, pumps, and facility piping. It is better to oversize than undersize.

ModelDescription with Link to Details
919060SSStainless Steel Central System Pump
98910820 GPM High Flow Level Master with 60 Gallon Tank
98915516 Gallon Mini-Central System Complete
Includes Pump and Level Master

Lafferty also offers entryway variants and options for special situations:
  • Air pump models to draw ready-to-use chemical from a nearby container.
  • “Airless” foamers that do not require compressed air.
  • Dual-door systems to simultaneously foam two nearby doorways.
  • 24V versions of any 120V system.
  • Custom designs and more!

Don’t forget hand sanitation!

Please contact us for personal assistance based on the exact needs of your facility.
