Portable Liberty LC Foamer – Interactive Guide

Featured System:

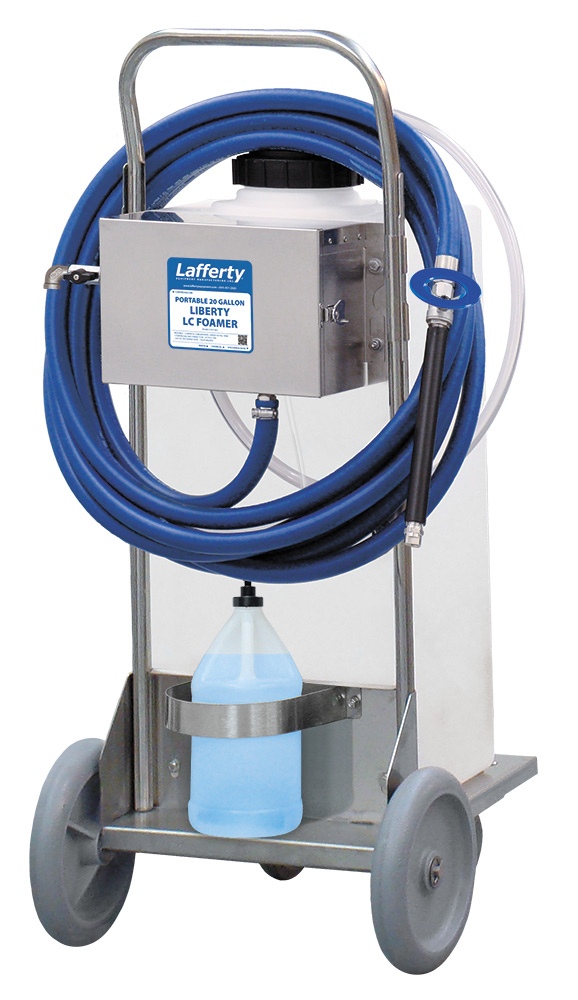

Portable 20-Gallon Liberty LC Foamer
Model # 941387

The Portable 20-Gallon Liberty LC Foamer is a medium volume venturi foam applicator designed for facilities with low or fluctuating water pressure. It projects foaming chemicals on to any surface up close or at distances up to 10 feet.

This unit features an all stainless steel 4-wheel cart and enclosure and uses a cost-effective Flojet air-operated, double-diaphragm pump to draw water from the 20-gallon tank and provide the pressure for the venturi “LC Foamer”. The LC Foamer body draws and blends chemical concentrate into the water stream to create an accurately diluted solution.

Compressed air is injected into the solution to greatly increase volume and coverage ability and rich, clinging foam is projected through the hose, wand, and fan nozzle.

On-demand chemical dilution provides many operational and maintenance advantages compared to typical air pump foamers that need to be filled with ready-to-use chemical.

Interactive 3D Model

Rotate the interactive viewer to see inside the pump enclosure. The viewer will automatically play one loop upon loading.

ROTATE: Use menu buttons, mouse wheel, or click and drag viewer left/right. Some models also tilt up/down.
ZOOM: Use menu button or double-click viewer.

FEATURE CALLOUTS:
Icons appear when features are visible. Hover over or click icons to learn more. Move cursor away or click to close popups.

RECOMMENDED:
Enable full screen to see popup content that extends beyond viewer area.

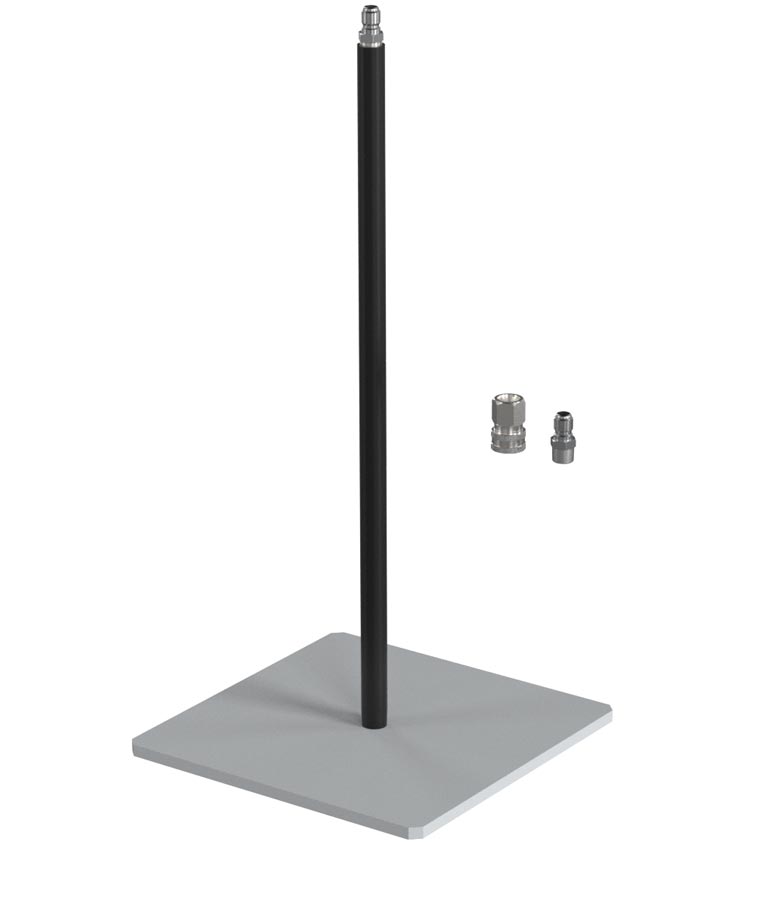

Optional Drain Foamer Attachment

#538245
  • Projects rich, clinging foam into drains for quick and effective cleaning.
  • Drain cover plate prevents backsplash towards the user.
  • Extended wand reduces bending and helps prevent back strain.
  • Includes quick disconnect fittings to install on the discharge ball valve and standard foam wand, which allows the user to easily switch between the foam wand and drain foamer attachment.

Learn More About Lafferty Air Pump Foamers and Sprayers

Contact Us

We look forward to recommending the best foamer and options to meet your cleaning requirements.
