Hands-Free Mixing Stations

Foot-lever activation allows for sanitary, hands-free chemical mixing and dispensing.

Featured System:
1-Way Hands-Free Mixing Station
Model # 985103

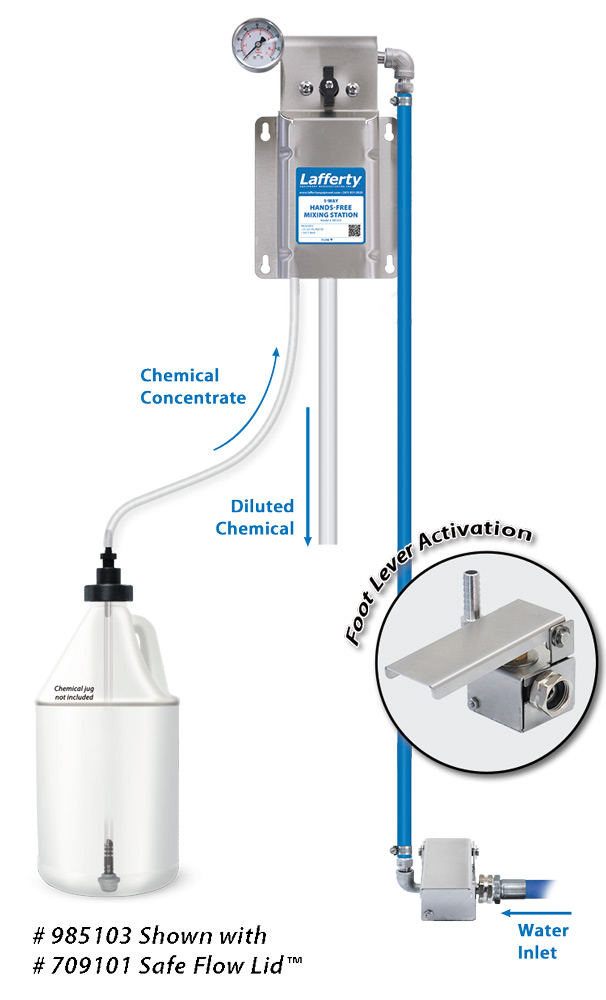

The 1-Way Hands-Free Mixing Station is a foot-lever-activated venturi chemical proportioner that accurately dilutes chemical to the required ratio and dispenses into any size container.

When the foot lever is depressed, this system uses city water pressure (25 – 125 PSI) to draw and blend chemical concentrate into the water stream. When the lever is released, the flow of water quickly stops.

The activation lever can be installed in any convenient location on the floor, wall, or other flat surface. A safety shutoff ball valve on the Mixing Station can be closed to prevent activation via the lever.

Common Usage Situations

Quickly dispense drain cleaning and deodorizing products directly into floor drains.

And many other unique applications!
  • Food Service
  • Veterinary Clinics
  • Medical Facilities
  • Food & Beverage
  • School Hygiene
  • Industrial
  • Janitorial/Sanitation
  • Supermarkets

Learn More

See full product details on the main Lafferty website. Please contact us with any questions!

Learn MoreContact Us

Lafferty Mixing Stations dispense diluted chemical into any size container via an open-flow discharge tube. Choose a factory-set flow rate at the time of order (Bottle Fill, Low Flow or High Flow).

  • Bottle Fill flow rate (0.62 GPM @ 40 PSI) to avoid splashing while filling small hand-held spray bottles.
  • Low Flow (2.10 GPM @ 40 PSI) for mid-size containers (1-gallon jugs, Pump Up Foamers, etc.)
  • High Flow (4.51 GPM @ 40 PSI) for filling larger containers such as mop buckets and air pump foamers.

Catalog 9: Chemical Management Systems

See Also: Hands-Free Sanitizer Dispensers
