Lafferty Learning Center

Pulp, Paper and Printing

Chemical management and cleaning are involved at every step of the papermaking process. Lafferty dilution and application systems make a perfect companion for almost any chemical product.

High-performing and low-maintenance equipment gets the job done right while reducing downtime and operating costs.

Lafferty Manufactures…

Airless and Air-Assisted Foamers

Sprayers

Mixing Stations (Proportioners)

Air-Pump Freedom XV Foamer

The Lafferty Freedom XV Foamer is a high volume foam applicator for projecting foaming chemicals on to any surface up close or at distances up to 25 feet.

This model features a stainless steel enclosure containing a rugged 1/2″ Sandpiper air-operated, double-diaphragm pump, which draws ready-to-use chemical from a day tank or drum/tote. Compressed air is injected into the solution to greatly increase volume and coverage ability rich, clinging foam is projected through the hose, wand and nozzle.

The Freedom XV Foamer is also available in a portable configuration (#944186, see below).

washing large equipment

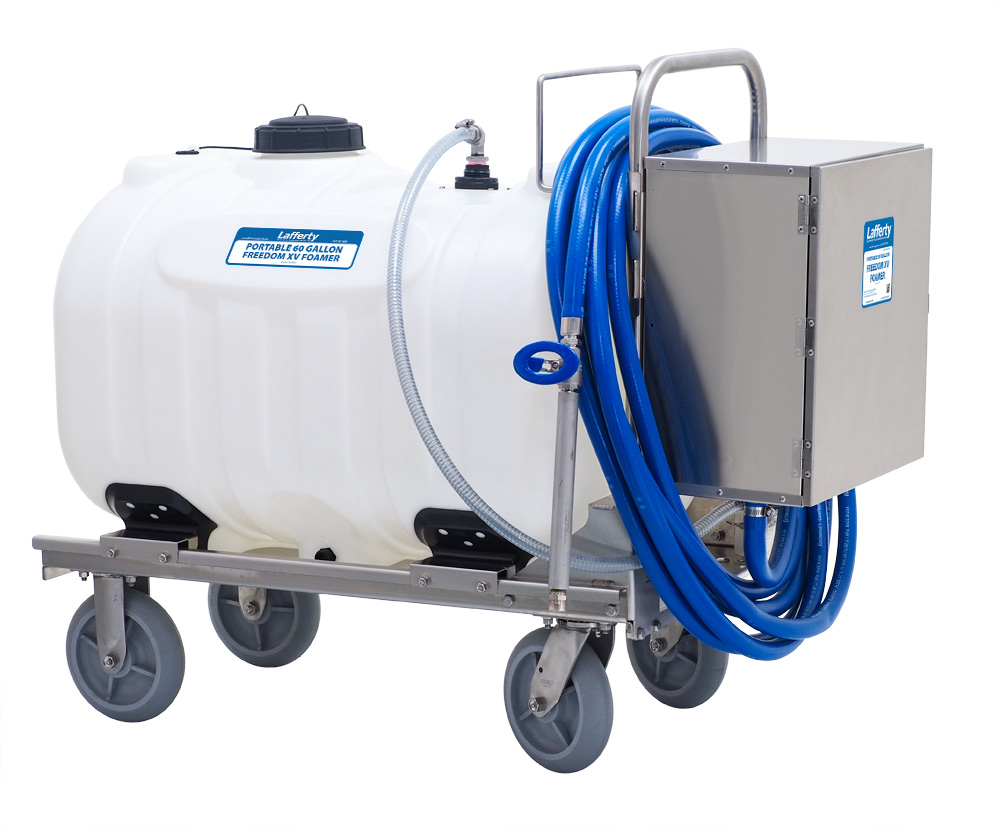

Freedom XV Foamer
Model #944186

The Portable Freedom XV Foamer is mounted to a robust stainless steel cart with onboard 60-gallon chemical tank.

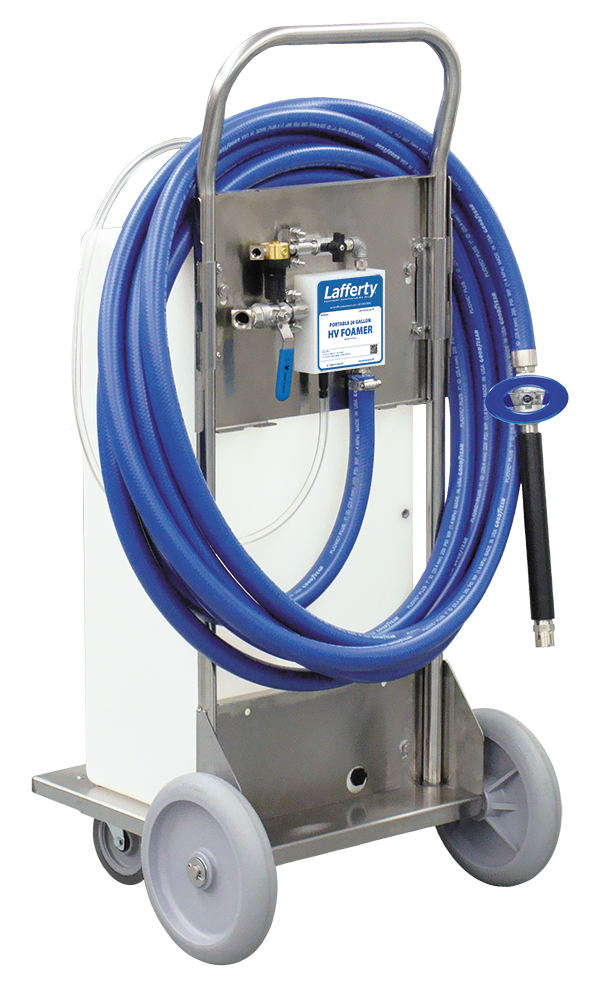

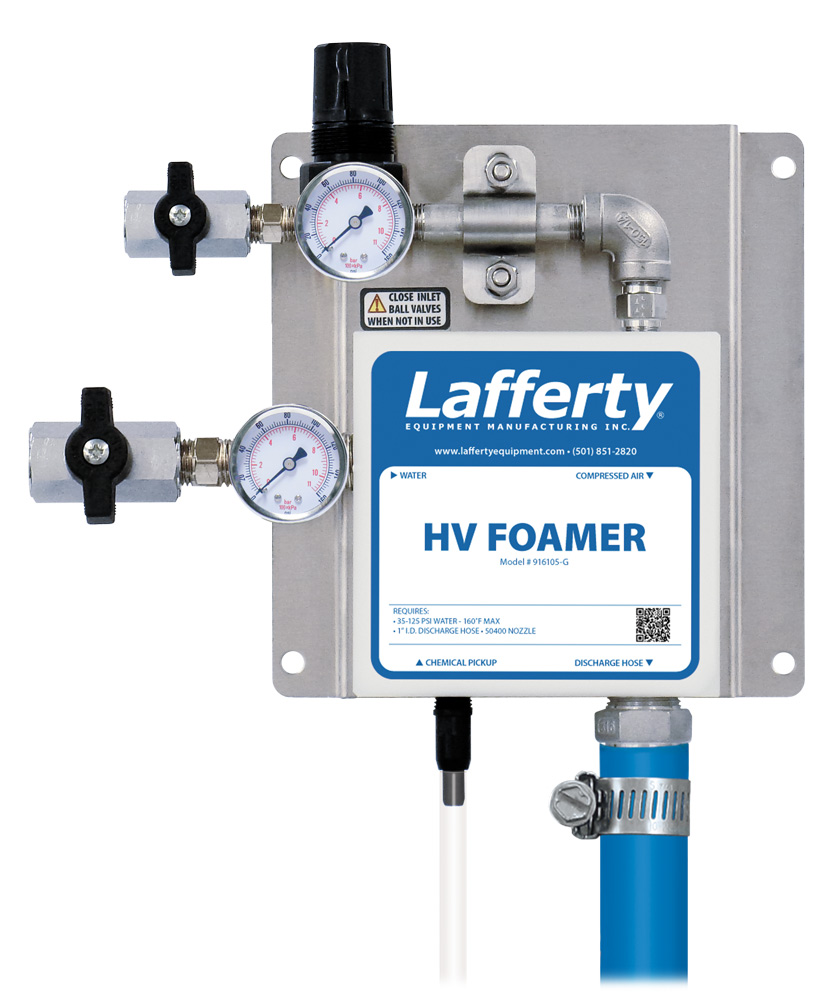

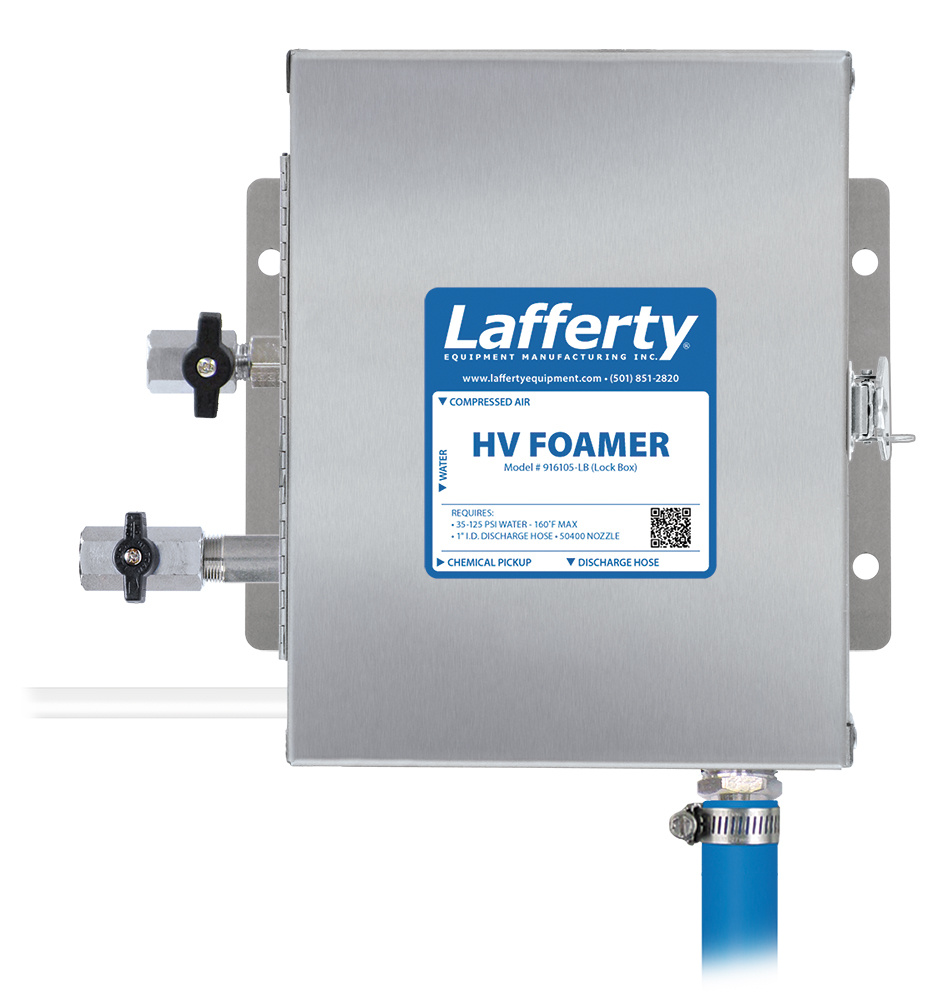

Water-Driven High Volume (HV) Foamers

HV Foamers are high volume foam applicators for projecting foaming chemicals on to any large surface. These venturi injection systems use standard city water pressure (35 – 125 PSI) to draw and blend chemical concentrate into the water stream on demand.

A high volume of rich, clinging foam is projected in a fan pattern at distances up to 15 feet, or up to 25 feet with a zero degree long-range nozzle.

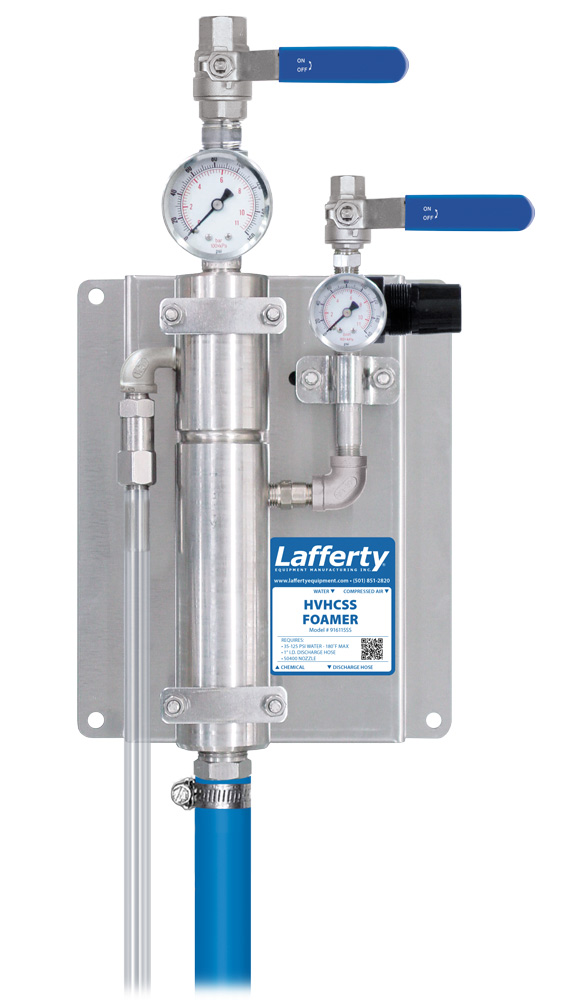

The High Volume / High Concentrate (HVHC) Foamer achieves strong dilution ratios – up to 3:1

Equipment for Printing Services

Lafferty chemical management systems continue playing an important role after paper leaves the mill. Quality equipment helps large and small-scale print operations decrease cleaning downtime and related water/chemical costs.
